JY
Steel Bed Frames — Manufacturer & Wholesale Supplier
The JY series: a straightforward, over-spec'd steel bed frame at 260 mm bed height with 12 or 24 slats. The workhorse option when the brief calls for a conventional look and a proven structure.
JY series

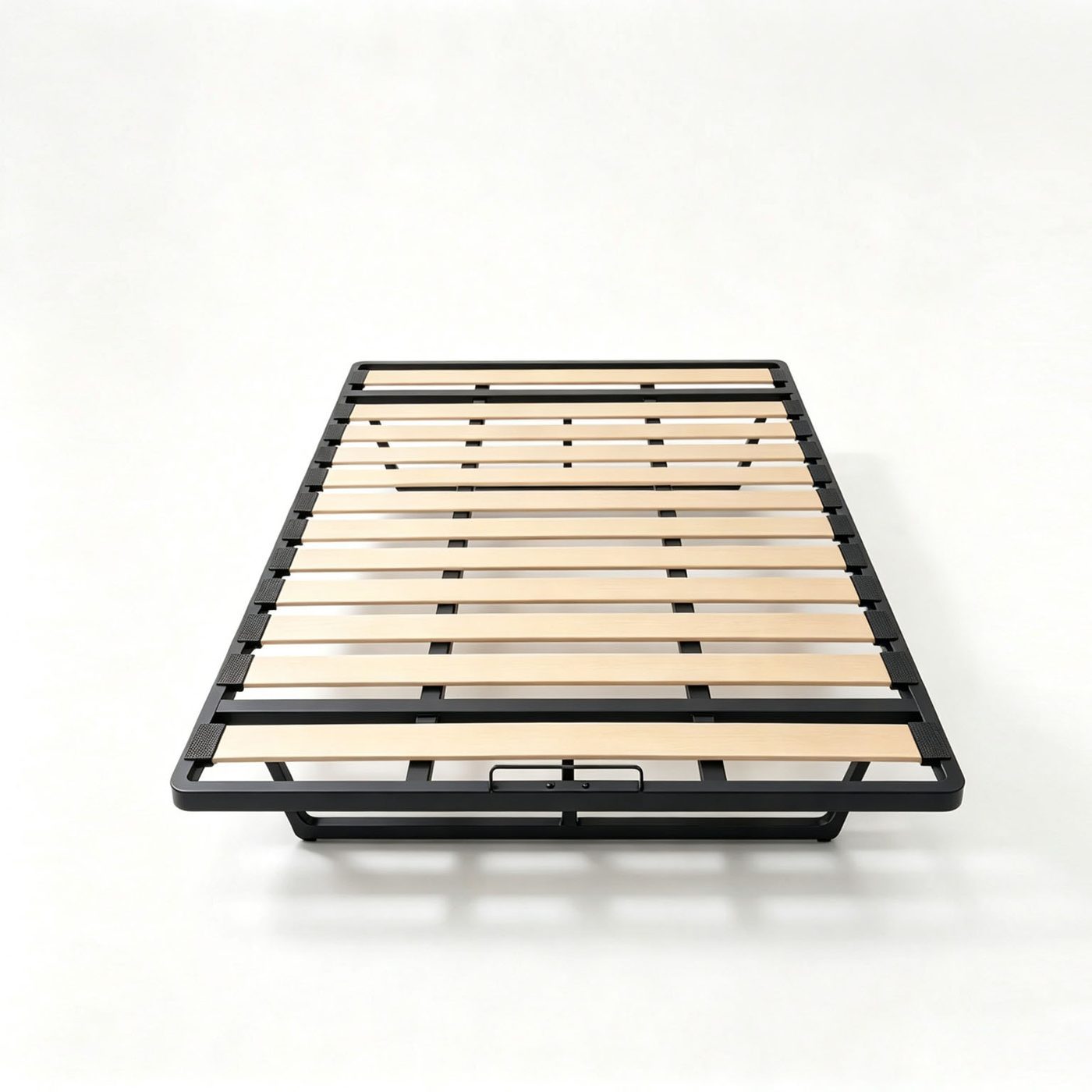

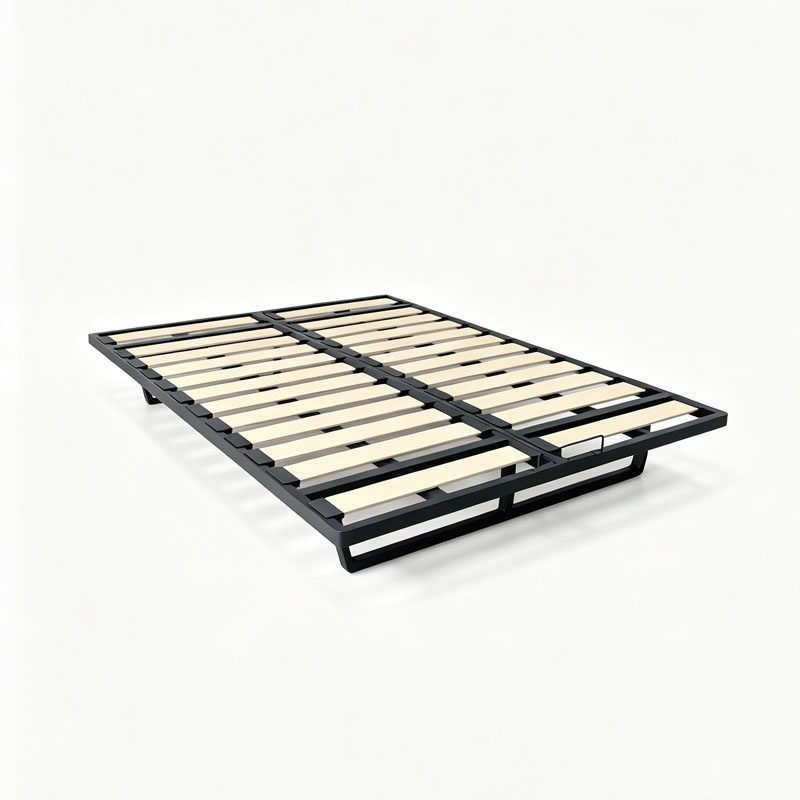

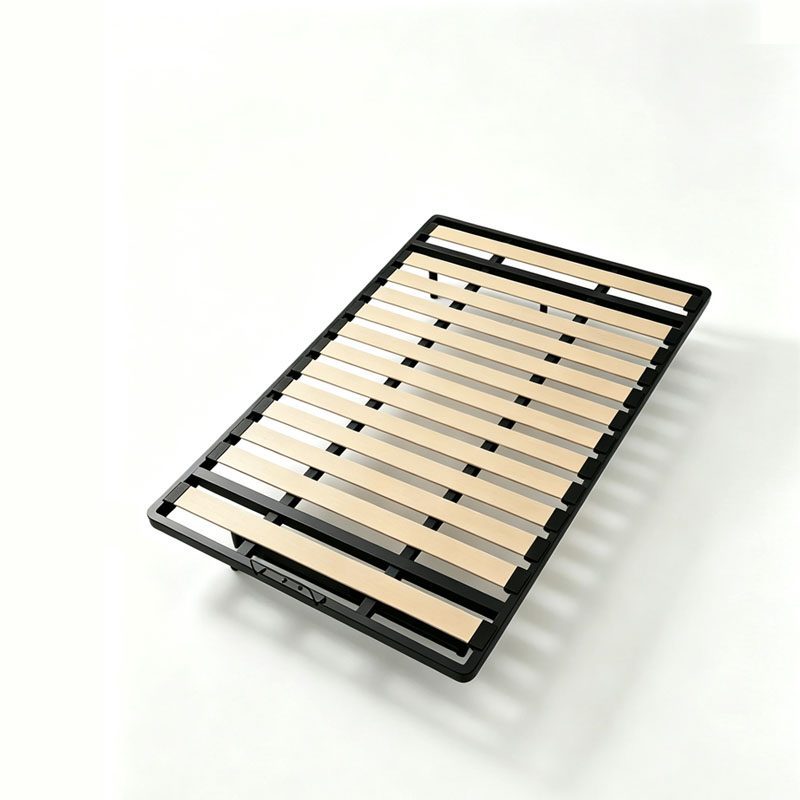

JY Bed Frame
A conventional steel bed frame at 260 mm bed height with 12 or 24 slats — the general-purpose answer to a standard brief.
| Frame material | Carbon steel square tube |
|---|---|
| Slats | 12 pcs (900–1350 mm) / 24 pcs (1500–1800 mm) |
| Bed height | 260 mm |
| Structure | Conventional fixed frame |
| Size range | 900 – 1800 mm mattress width |
Sizes & packing data
| Mattress size (mm) | Slats (pcs) | Carton size L×W×H (mm) | Volume (m³) | Gross weight (kg) |
|---|---|---|---|---|
| 900×2000 Single | 12 | 940×2060×65 | 0.13 | 31.10 |
| 1200×2000 Single XL | 12 | 1240×2060×65 | 0.17 | 35.50 |
| 1350×2000 Double (EU) | 12 | 1390×2060×65 | 0.19 | 37.70 |
| 1500×2000 Double | 24 | 810×2060×100 | 0.17 | 39.90 |
| 1800×2000 King (EU) | 24 | 960×2060×100 | 0.20 | 44.30 |
Carton dimensions, volume and gross weight per HJF-PW-2026-001 (measured and confirmed by HJF Metal, 2026-09-30). Slat counts are given per size — some series use a higher slat count on the wider sizes. Weights are gross, including packaging. Bed frame outer dimensions follow the drawing confirmed by both parties. Prices are not published — request a quote.
Ordering the Bed Frames range
| Minimum order | 100 pieces per model and size |
|---|---|
| Mixing | Different models and sizes can share one container |
| Trial orders | Smaller trial runs can be applied for separately |
| Samples | 7–10 days; the sample cost is credited against your first bulk order |
| Bulk lead time | 25–35 days; 30–45 days in peak season or for custom work |
| Trade terms | EXW, FOB Shenzhen or CIF. Inland transport can be arranged |
| Payment | 30% deposit, balance before shipment on a first order; L/C at sight for large orders |
| Warranty | 2 years on structure and workmanship, 1 year on moving parts |
Prices are quoted against your specification and destination port. Full terms in the FAQ →
Tell us the spec. We will send the numbers.
Send a model, a size and a quantity — or just a drawing. You will get carton dimensions, packed volume, gross weight and a lead time.
